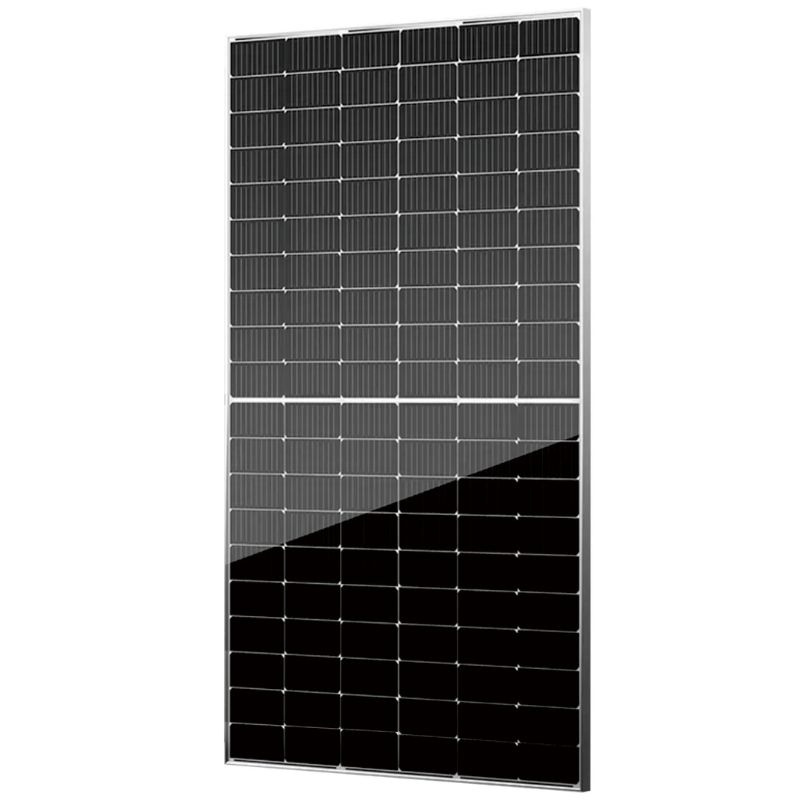

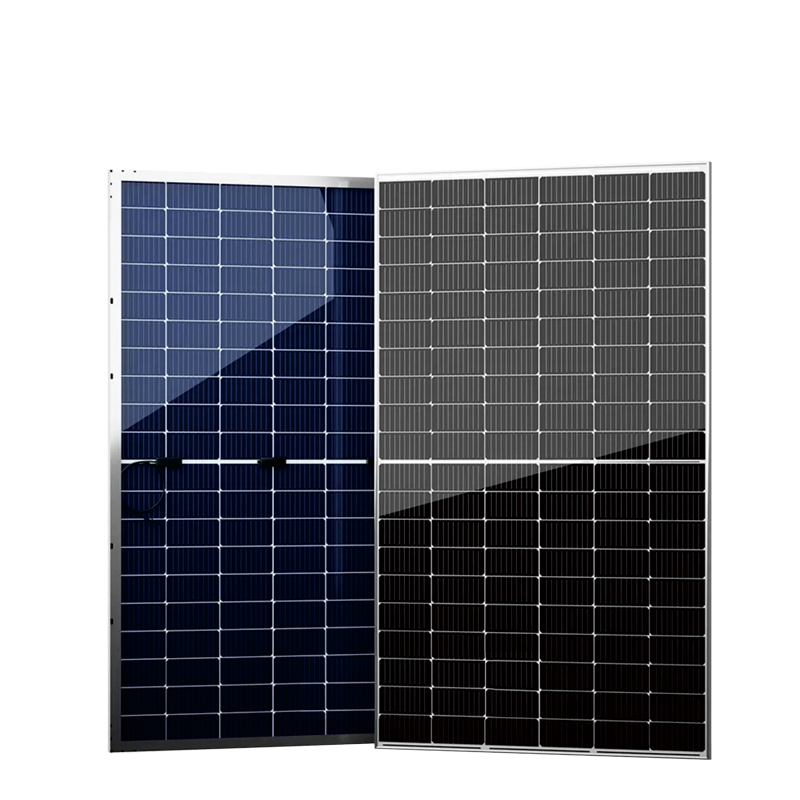

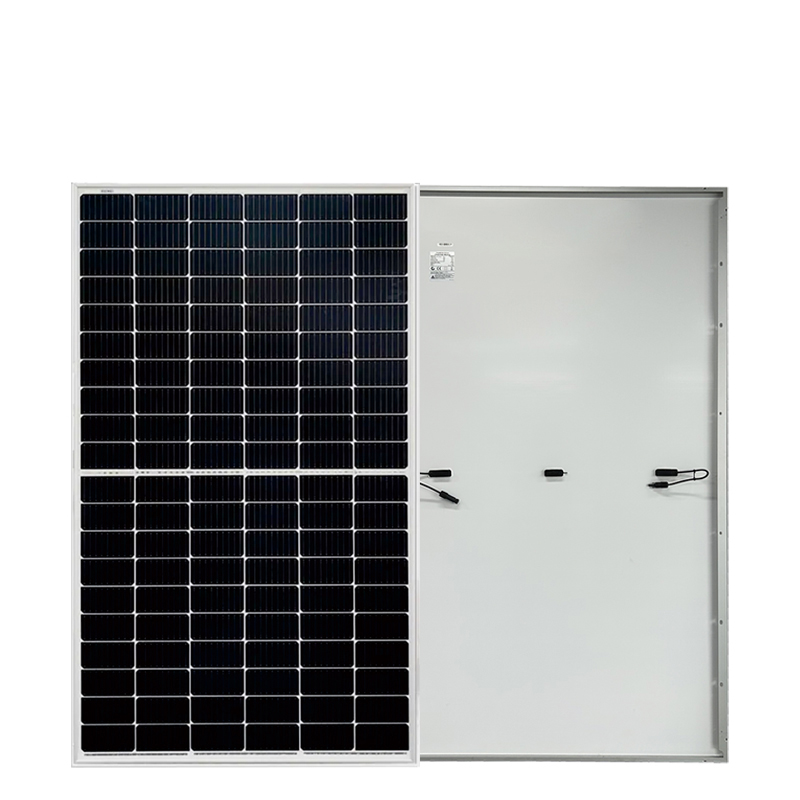

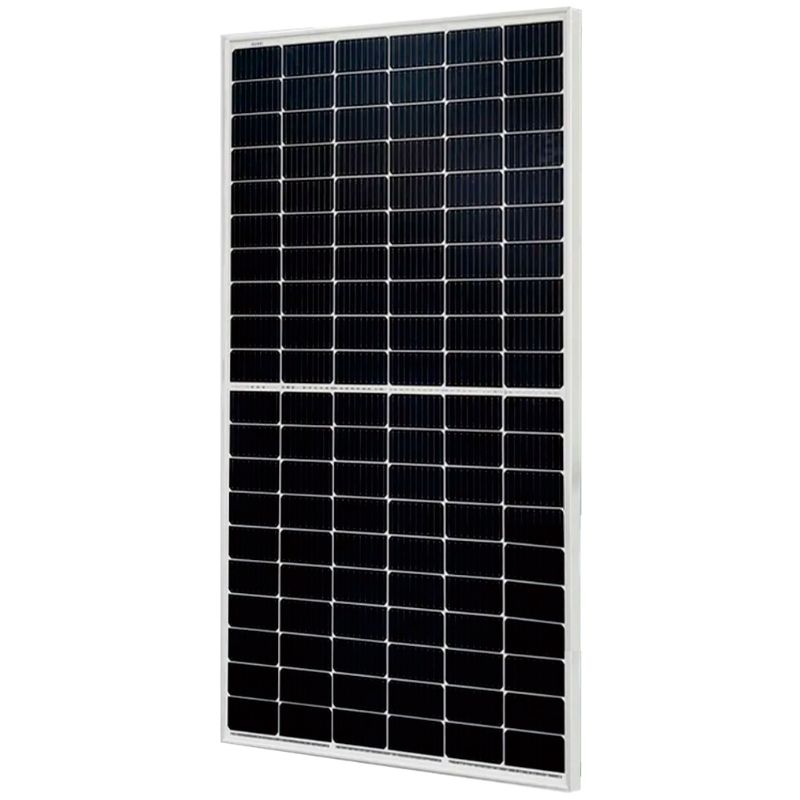

Half Cut 460-485W Mono Solar Panel

JMS120NM
Half Cut 460-485W Mono Solar Panel
Half Cut 460-485W Mono Solar Panel
Half Cut 460-485W Mono Solar Panel
Half Cut 460-485W Mono Solar Panel
Half Cut 460-485W Mono Solar Panel
Get a Quote Now

Description

Reviews

Module Pictures

Electrical Parameters at STC

Module Type JMS460N-120M JMS465N-120M JMS470N-120M JMS475N-120M JMS480N-120M JMS485N-120M
Maximum Power（Pmax/W） 460 465 470 475 480 485
Module Efficiency（%） 21.25% 21.48% 21.71% 22.17% 22.17% 22.40%
Open Circuit Voltage（Voc/V） 42.00 42.20 42.40 42.60 42.80 43.00
Short Circuit Current（Isc/A） 13.99 14.06 14.13 14.20 14.27 14.33
Voltage at Max. Power（Pmp/V） 34.88 35.08 35.27 35.46 35.65 35.83
Current at Max. Power（Imp/A） 13.19 13.26 13.33 13.40 13.47 13.54
Power Tolerance Pmax±3%
STC：Irradiance 1000W/㎡  Cell Temperature 25℃  AM1.5

Electrical Parameters at NOCT

Module Type JMS460N-120M JMS465N-120M JMS470N-120M JMS475N-120M JMS480N-120M JMS485N-120M
Maximum Power（Pmax/W） 346 350 353 357 361 365
Open Circuit Voltage（Voc/V） 40.00 40.19 40.38 40.57 40.76 40.95
Short Circuit Current（Isc/A） 11.28 11.34 11.40 11.45 11.51 11.56
Voltage at Max. Power（Pmp/V） 33.86 34.06 34.24 34.43 34.61 34.79
Current at Max. Power（Imp/A） 10.55 10.61 10.66 10.72 10.78 10.83
NOCT：Irradiance 800W/㎡  Ambient Temperature 20℃  Wind at 1m/S  AM1.5

Product Size

Overall dimensions (L×W×H) Power range Weight
1909mm×1134mm×30mm 460-485W 25.2kg±3%
Mechanical Diagrams
Characteristics

Operating Parameters

Operating Temperature -40℃~+85℃
Maximum System Voltage DC 1500V
Nominal operating cell temperature (NOCT) 45±2℃
Fireproof Performance Glass C
Maximum Series Fuse 25A
Temperature coefficients of Voc -0.25%/℃
Temperature coefficients of Isc 0.045%/℃
Temperature coefficients of Pmax -0.29%/℃
Refer. Bifacial Factor 80±5%
Mechanical Parameters
Cell N type mono
Solar Cells 108pcs（2*54）
Dimension 1909mm×1134×30mm
Weight 22kg±3%
Structure 2.0 glass + POE/EPE film + 2.0 glass
frame Anodized - Aluminum alloy
Junction Box IP68、3*bypass diode
Cable Length ( Including Connector) 4.0mm²， （+）300mm/（-）300mm（ custom ）
Connector MC4/Compatible with MC4
Mechanical load Front 5400Pa/ Back 2400Pa （ Maximum Static Load ）
Quality Warranty and Certification System
Module Excellence
Module Packaging
Module Type  JMSXXXN-120M
Dimension 1909*1134*30mm
Number 36PCS
Volume 2.745 m³
Weight N.W 907.2kg / G.W 935kg
40'HQ Container 864PCS
