Products Solar Panel
TOPCon Solar Panel

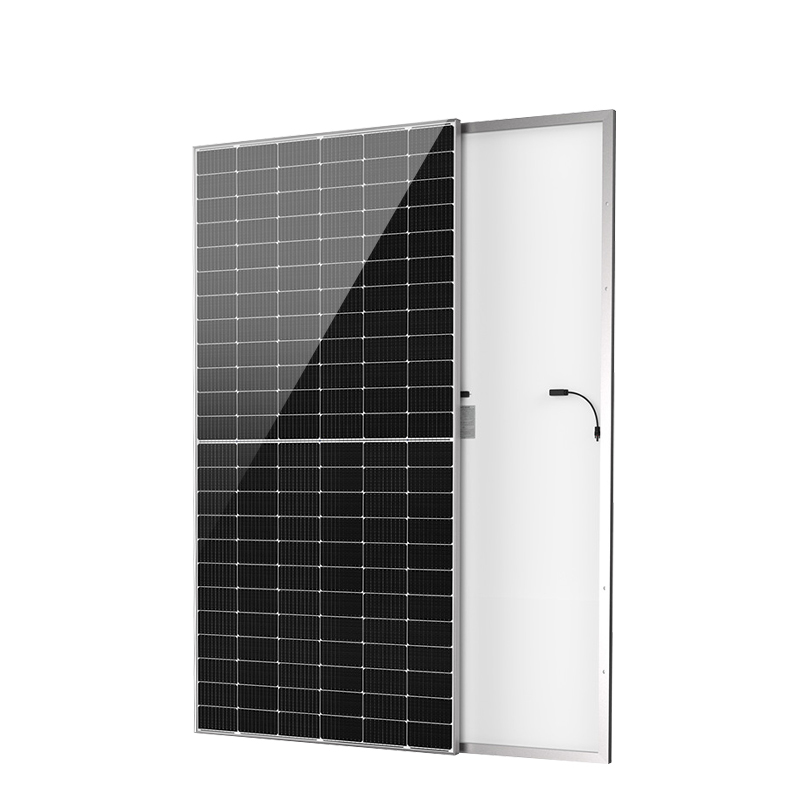

555-580W TOPCon Solar Panel

JMD144NM
555-580W TOPCon Solar Panel
555-580W TOPCon Solar Panel
555-580W TOPCon Solar Panel
555-580W TOPCon Solar Panel
555-580W TOPCon Solar Panel
Get a Quote Now

Description

Reviews

Module Pictures

Electrical Parameters at STC

Module Type JMS555N-144M JMS560N-144M JMS565N-144M JMS570N-144M JMS575N-144M JMS580N-144M
Maximum Power（Pmax/W） 555 560 565 570 575 580
Module Efficiency（%） 21.48% 21.67% 21.86% 22.06% 22.25% 22.45%
Open Circuit Voltage（Voc/V） 50.65 50.8 50.95 51.1 51.25 51.4
Short Circuit Current（Isc/A） 14 14.06 14.12 14.2 14.28 14.35
Voltage at Max. Power（Pmp/V） 42.06 42.23 42.39 42.55 42.71 42.87
Current at Max. Power（Imp/A） 13.2 13.27 13.33 13.4 13.47 13.53
Power Tolerance Pmax±3%
STC：Irradiance 1000W/㎡  Cell Temperature 25℃  AM1.5

Electrical Parameters at NOCT

Module Type JMS555N-144M JMS560N-144M JMS565N-144M JMS570N-144M JMS575N-144M JMS580N-144M
Maximum Power（Pmax/W） 417 421 425 429 432 436
Open Circuit Voltage（Voc/V） 48.24 48.38 48.52 48.67 48.81 48.95
Short Circuit Current（Isc/A） 11.29 11.34 11.39 11.45 11.52 11.57
Voltage at Max. Power（Pmp/V） 39.68 39.84 39.99 40.14 40.29 40.44
Current at Max. Power（Imp/A） 10.56 10.62 10.66 10.72 10.78 10.82
NOCT：Irradiance 800W/㎡  Ambient Temperature 20℃  Wind at 1m/S  AM1.5

Bifacial Output-rearside Power Gain（570W）

Rearside power gain 10% 15% 20% 25% 30%
Maximum Power（Pmax/W）  627 655.5 684 712.5 741
Open Circuit Voltage（Voc/V） 51.6 51.6 51.7 51.7 51.7
Short Circuit Current（Isc/A） 15.68 16.39 17.1 17.81 18.53
Voltage at Max. Power（Pmp/V） 42.32 42.32 42.42 42.42 42.42
Current at Max. Power（Imp/A） 14.82 15.49 16.12 16.8 17.47

Product Size

Overall dimensions (L×W×H) Power range Weight

2279mm×1134mm×30mm

555-580W

31.5kg±3%

Mechanical Diagrams
Characteristics

Operating Parameters

Operating Temperature -40℃~+85℃
Maximum System Voltage DC 1500V
Nominal operating cell temperature (NOCT) 45±2℃
Fireproof Performance Glass C
Maximum Series Fuse 25A
Temperature coefficients of Voc -0.25%/℃
Temperature coefficients of Isc 0.045%/℃
Temperature coefficients of Pmax -0.29%/℃
Refer. Bifacial Factor 80±5%
Mechanical Parameters
Cell N type mono
Solar Cells 144pcs（2*72）
Dimension 2279mm×1134×30mm
Weight 31.5kg±3%
Structure 2.0 glass + POE/EPE film + 2.0 glass
frame Anodized - Aluminum alloy
Junction Box IP68、3*bypass diode
Cable Length ( Including Connector) 4.0mm²， （+）300mm/（-）300mm（ custom ）
Connector MC4/Compatible with MC4
Mechanical load Front 5400Pa/ Back 2400Pa （ Maximum Static Load ）
Quality Warranty and Certification System
Module Excellence
Module Packaging
Module Type JMSXXXN-144M
Dimension 2279*1134*30mm
Number 36PCS
Volume 3.300 m³
Weight N.W 1134kg/ G.W 1162kg
40'HQ Container 720pcs
