Products Solar Panel
Mono Solar Panel

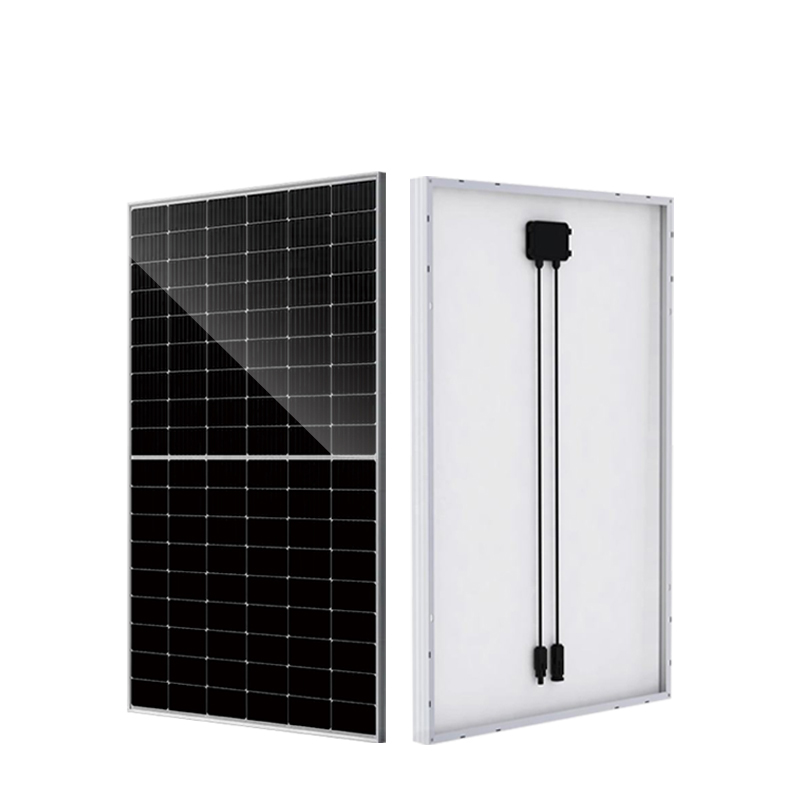

410-435W High Efficiency Mono Solar Panel

JMS108NM
410-435W High Efficiency Mono Solar Panel
410-435W High Efficiency Mono Solar Panel
410-435W High Efficiency Mono Solar Panel
410-435W High Efficiency Mono Solar Panel
Get a Quote Now

Description

Reviews

Module Pictures

Electrical Parameters at STC

Module Type JMS410N-108M JMS415N-108M JMS420N-108M JMS425N-108M JMS430N-108M JMS435N-108M
Maximum Power（Pmax/W） 410 415 420 425 430 435
Module Efficiency（%） 21.00% 21.25% 21.51% 21.76% 22.02% 22.28%
Open Circuit Voltage（Voc/V） 37.60 37.80 38.00 38.20 38.40 38.60
Short Circuit Current（Isc/A） 13.93 14.01 14.09 14.17 14.25 14.32
Voltage at Max. Power（Pmp/V） 31.23 31.42 31.61 31.80 31.99 32.18
Current at Max. Power（Imp/A） 13.13 13.21 13.29 13.37 13.45 13.52
Power Tolerance Pmax±3%
STC：Irradiance 1000W/㎡  Cell Temperature 25℃  AM1.5

Electrical Parameters at NOCT

Module Type JMS410N-108M JMS415N-108M JMS420N-108M JMS425N-108M JMS430N-108M JMS435N-108M
Maximum Power（Pmax/W） 308 312 316 320 323 327
Open Circuit Voltage（Voc/V） 35.81 36.00 36.19 36.38 36.57 36.76
Short Circuit Current（Isc/A） 11.23 11.30 11.36 11.43 11.49 11.55
Voltage at Max. Power（Pmp/V） 29.19 29.36 29.54 29.72 29.90 30.07
Current at Max. Power（Imp/A） 10.59 10.65 10.72 10.78 10.85 10.90
NOCT：Irradiance 800W/㎡  Ambient Temperature 20℃  Wind at 1m/S  AM1.5

Product Size

Overall dimensions (L×W×H) Power range Weight
1722mm×1134mm×30mm 410-435W 22kg±3%
Mechanical Diagrams
Characteristics

Operating Parameters

Operating Temperature -40℃~+85℃
Maximum System Voltage DC 1500V
Nominal operating cell temperature (NOCT) 45±2℃
Fireproof Performance Glass C
Maximum Series Fuse 25A
Temperature coefficients of Voc -0.25%/℃
Temperature coefficients of Isc 0.045%/℃
Temperature coefficients of Pmax -0.29%/℃
Refer. Bifacial Factor 80±5%
Mechanical Parameters
Cell N type mono
Solar Cells 108pcs（2*54）
Dimension 1722mm×1134×30mm
Weight 22kg±3%
Structure 2.0 glass + POE/EPE film + 2.0 glass
frame Anodized - Aluminum alloy
Junction Box IP68、3*bypass diode
Cable Length ( Including Connector) 4.0mm²， （+）300mm/（-）300mm（ custom ）
Connector MC4/Compatible with MC4
Mechanical load Front 5400Pa/ Back 2400Pa （ Maximum Static Load ）
Quality Warranty and Certification System
Module Excellence
Module Packaging
Module Type JMSXXXN-108M
Dimension 1722*1134*30mm
Number 36PCS
Volume 2.490 m³
Weight N.W 792kg / G.W 816kg
40'HQ Container 936PCS
