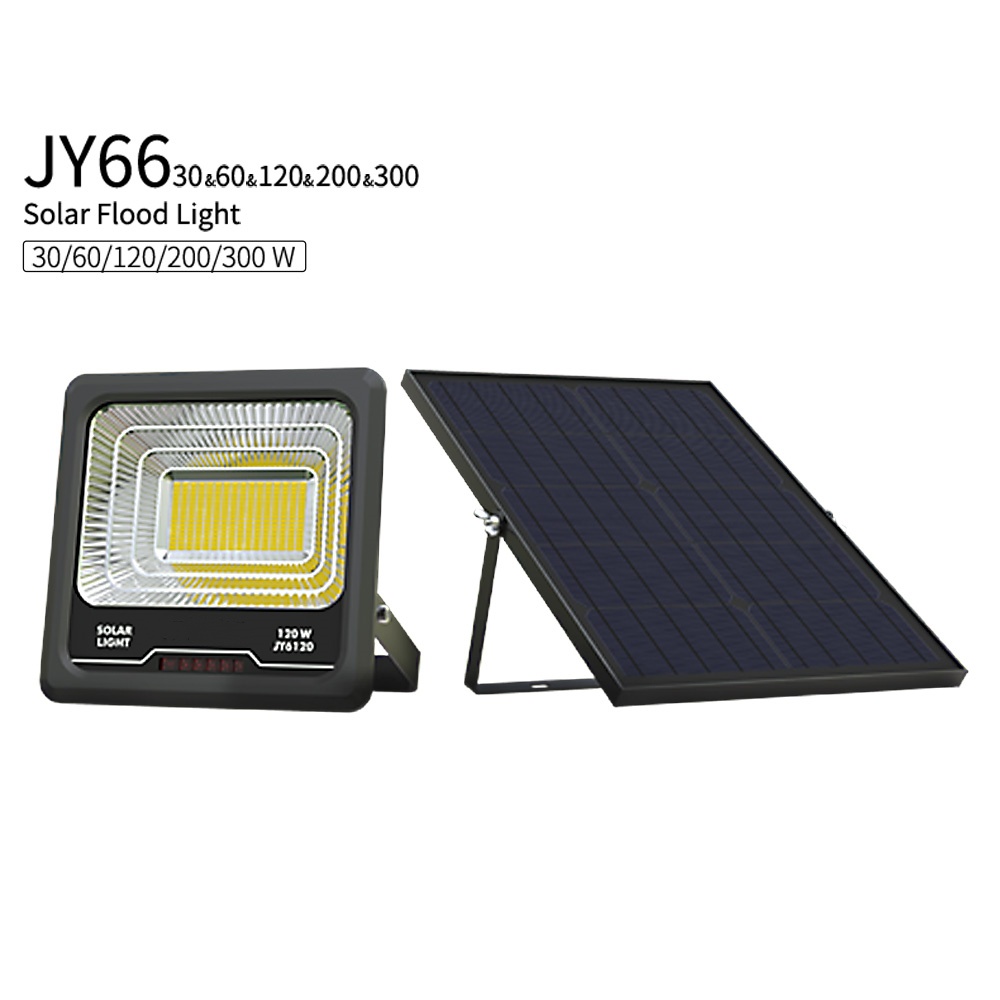

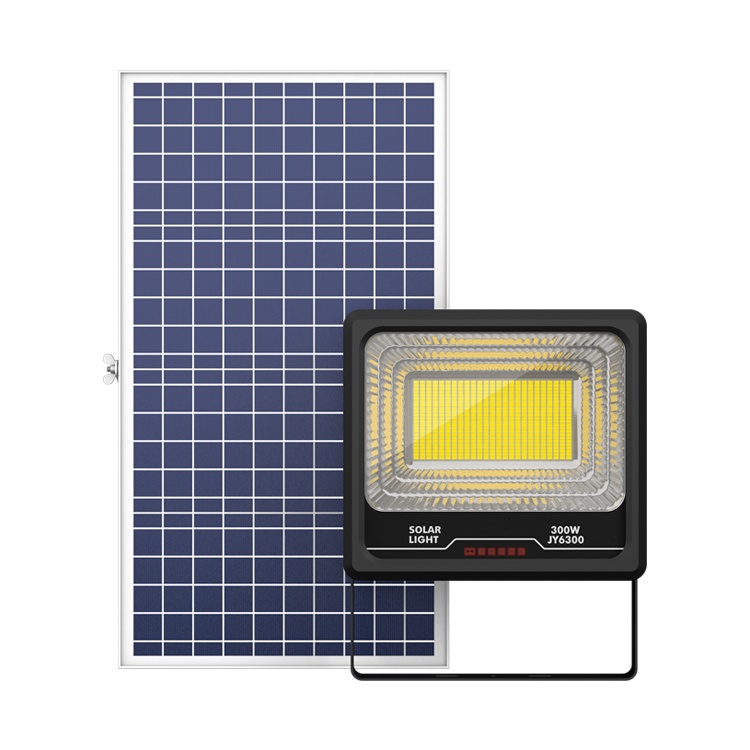

30W/60W/120W/200W/300W JY6XXX Solar Flood Light
Description
Reviews
Main Components
• Supreme Quality Battery
• 2835 High Luminous LED
• Battery Energy Indicator
• High Quality Die Casting Aluminum Housing
Features
Optional Portable Work Light
IP67 Compact Handy Design
100% Solar Powered
Free Installation and Easy Maintenance
3 Years of Standard Warranty, Premium Warranty 5 years Is Optional
Remote Controlling
Remote Controller Is Equipped to Improve the Adaptability in Different Weather Conditions
Efficient Solar Panel
High efficiency monocrystalline silicon solar panel for better performance especially in the cloudy and rainy days.
|
Model |
JY6630 |
JY6660 |
JY6120 |
JY6200 |
JY6300 |
|
Optical Parameters |
|||||
|
LED Rated Power（max） |
30W |
60W |
120W |
200W |
300W |
|
Efficiency |
140lm/W |
140lm/W |
140lm/W |
140lm/W |
140lm/W |
|
CCT |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
|
CRI |
≥70 |
≥70 |
≥70 |
≥70 |
≥70 |
|
Beam Angle |
90° |
90° |
90° |
90° |
90° |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Structural Parameters |
|||||
|
PV Size |
350x195x17mm |
350x300x17mm |
350x430x17mm |
350x570x17mm |
350x660x17mm |
|
Product Size |
266.82x207.6x71mm |
293.8x230.7x71mm |
326.8x258.3x71mm |
356.3x292.4x71mm |
394.2x320.4x71mm |
|
Front Size Glass |
3.2mm transparent/anti-reflection coating/tempered glass |
3.2mm transparent/anti-reflection coating/tempered glass |
3.2mm transparent/anti-reflection coating/tempered glass |
3.2mm transparent/anti-reflection coating/tempered glass |
3.2mm transparent/anti-reflection coating/tempered glass |
|
Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Solar Panel Parameters |
|||||
|
Nominal Power |
10W |
16W |
24W |
32W |
38W |
|
Voltage at Pmax（vmp） |
5V |
5V |
5V |
5V |
5V |
|
Current at Pmax（vmp） |
2.00A |
3.40A |
5.20A |
6.80A |
8.00A |
|
Energy Storage Parameters |
|||||
|
Battery Type |
liFePo4 |
liFePo4 |
liFePo4 |
liFePo4 |
liFePo4 |
|
Nominal Capacity |
12.5Ah |
18Ah |
24Ah |
30Ah |
36Ah |
|
Nominal Voltage |
3.2V |
3.2V |
3.2V |
3.2V |
3.2V |
|
Other Parameters |
|||||
|
Storage Temperature |
-20°C-60°C |
-20°C-60°C |
-20°C-60°C |
-20°C-60°C |
-20°C-60°C |
|
Operation Temperature |
-20°C-50°C |
-20°C-50°C |
-20°C-50°C |
-20°C-50°C |
-20°C-50°C |
|
Sensor |
No |
No |
No |
No |
No |
|
Installation |
Surface mount bracket |
Surface mount bracket |
Surface mount bracket |
Surface mount bracket |
Surface mount bracket |
