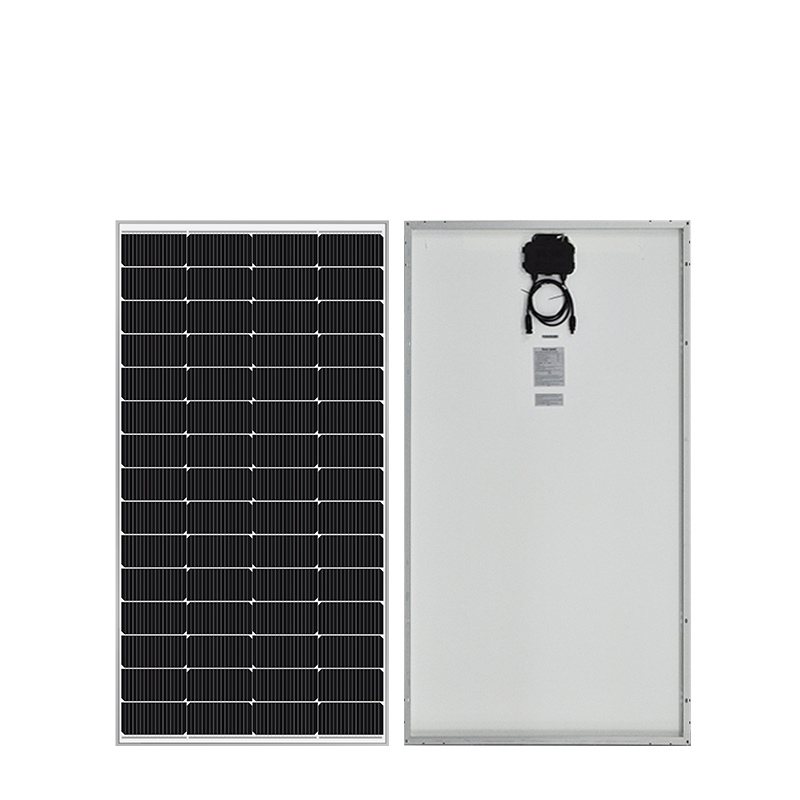

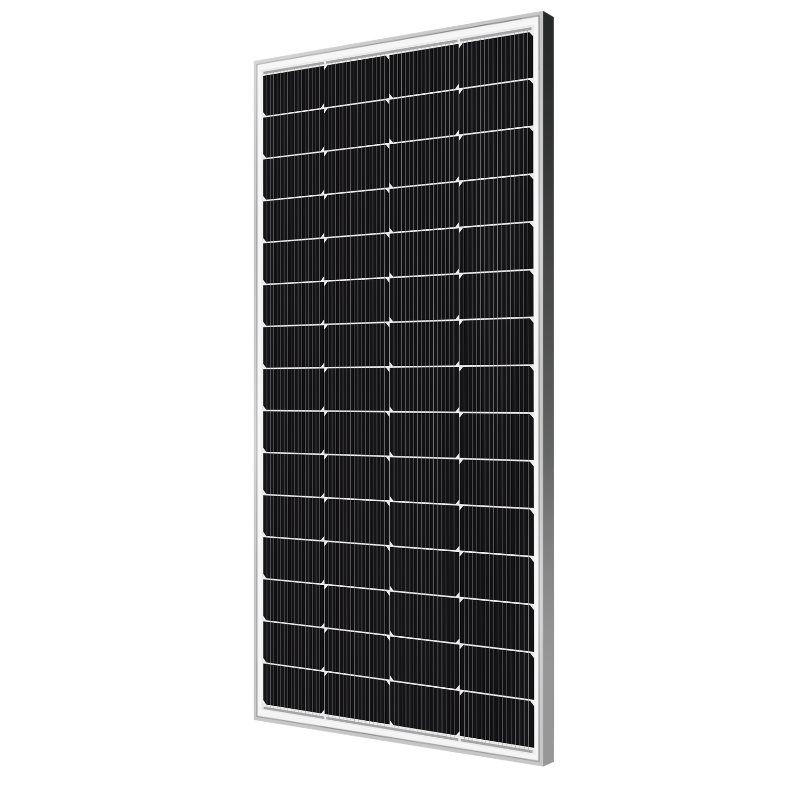

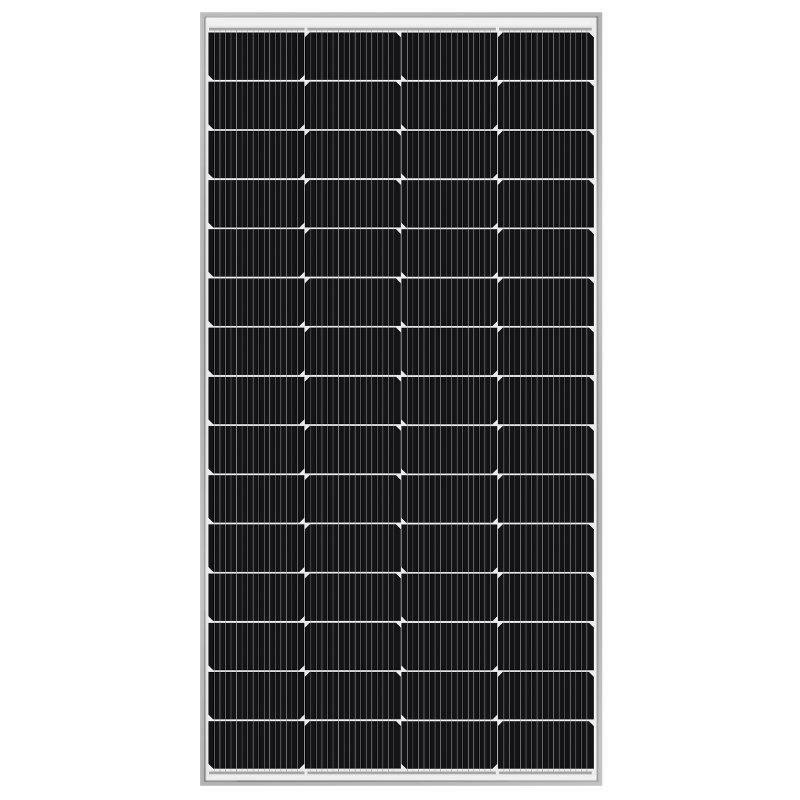

200W Small Mini Solar Panel

200W Small Mini Solar Panel
200W Small Mini Solar Panel
200W Small Mini Solar Panel
200W Small Mini Solar Panel
Get a Quote Now

Description

Reviews

Solarpro MONO half-cut singlemodule Assembled with PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, Cell temperature dependent performance,reduced shading effect on the energy generation,lower risk of hot  spot, as well as enhanced tolerance for mechanical loading.
Mechanical Diagrams
Specifications
Weight 11.7kg
Dimensions1470*760*30mm
Cell Size182*91mm
Cell Amount 4*15pcs
Maximum System Voltage  1000V
Junction Box IP67
Frame Anodized Aluminum Alloy
Cable 4.0mm²//90CM
Connector MC4
Application Class  Class A
Electrical Parameters At Stc
Module Type SY-200N
Maximum Power (Pmax/W) 200
Open Circuit Voltage(Voc/V) 21
Short Circuit Current(Isc/A) 12.35
Maximun Power Voltage (Vmp/V) 18
Maximum Power Current (Imp/A) 11.11
Module Efficiency (%) 17.9
*Under Standard Test Conditions(STC) of irradiance of 1000 W/m², spectrum AM 1.5 and cell temperature of 25°C
Temperature Characteristics
NOCT 45+2°C Temp Coefficient of Isc +0.,046%/C
Temp Coefficient of Voc -0.275%/°C Temp Coefficient of Pmax -0.350%/ C
Packingconfiguration
Modul es/Carton 2 Pieces Modules/40’Container1600 Pieces
Electrical Parameter Curve
Power Tolerance 土3%
Operating Temperature -40°C~+85°C
Wind Load/ Snow Load 2400pa/5400pa
